playground:crankshaft

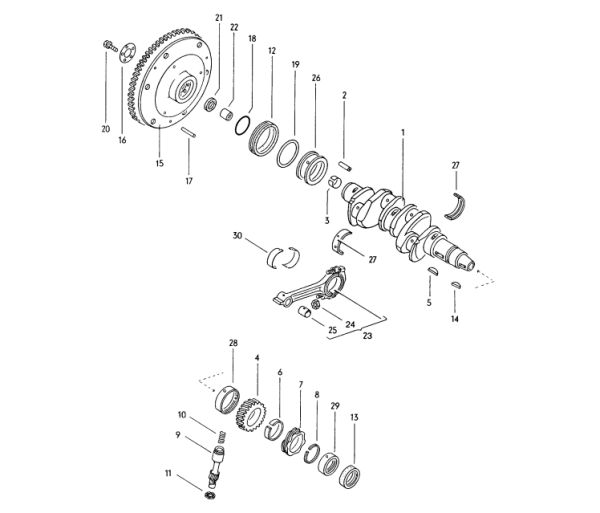

Pos Part Number Description Qty Model
Crankshaft 914
1 021 105 101 Crankshaft 1 914-4/1,7
914-1,8V/1,8
(1) 039 105 101 A Crankshaft 1 914-2,0
2 N 013 309 1 Tensioning sleeve 4,5 X 16 1
3 022 105 159 Spacer sleeve 1
4 021 105 209 A Gear wheel 1
5 111 105 213 Woodruff key for Gear wheel 1
6 113 105 219 Intermediate ring 1
7 901 102 115 00 Drive wheel 1
7 901 102 115 01 Drive wheel 1
8 111 105 227 Circlip for Distributor Drive wheel 1
9 021 105 231 Drive shaft 1
10 111 105 233 Spring 1
11 021 105 235 Spacer 1,3 MM 1
12 029 105 245 B Sealing ring $ 95 MM 1
13 021 105 247 A Sealing ring $ 62 MM 1
14 N 012 708 2 Woodruff key 4 X 5 1
15 022 105 273 A Flywheel 1
16 021 105 275 Washer 1
17 N 013 197 1 Straight pin 6 X 18 3
18 021 105 279 O-ring 1
19 021 105 281 Spacer 0,30 MM 1
(19) 021 105 283 Spacer 0,32 MM 1
(19) 021 105 285 Spacer 0,34 MM 1
(19) 021 105 287 Spacer 0,36 MM 1
(19) 021 105 289 Spacer 0,38 MM 1
(19) 021 105 291 Spacer 0,24 MM 1
(19) 021 105 292 Spacer 0,24 MM 1
20 N 014 336 1 Hexagon-head bolt M 12 X 1,5 X 25 Self-locking 5
20 N 014 336 B Hexagon-head bolt M 12 X 1,5 X 25 Self-locking 5
21 111 105 311 Sealing ring 1
22 111 105 313 A Needle-roller bearing 1
23 022 105 401 Connecting rod 4 914-4/1,7
022 105 401 041 Black
022 105 401 084 White
(23) 022 105 401 Connecting rod 4 914-1,8V/1,8
022 105 401 041 Black
022 105 401 084 White
(23) 039 105 401 Connecting rod 4 914-2,0
039 105 401 041 Black
039 105 401 084 White
M »GA0 016 000
M GC0 000 001»
24 113 105 427 Hexagon nut 8
24 056 105 427 Hexagon nut 8
24 113 105 427 Hexagon nut 8
24 056 105 427 Hexagon nut 8
25 021 105 431 A Connecting rod bush 4
26 021 105 501 B Crankshaft bearing 1 Outer $ 70 MM 1
(26) 021 105 507 B Crankshaft bearing 1 Outer $ 70 MM Undersize 0.25 mm 1
(26) 021 105 513 B Crankshaft bearing 1 Outer $ 70 MM Undersize 0.50 mm 1
(26) 021 105 519 A Crankshaft bearing 1 Outer $ 70 MM Undersize 0,75 MM 1
27 021 105 531 E Bearing shell for Crankshaft bearing 2 Outer $ 70 MM 2
(27) 021 105 537 E Bearing shell for Crankshaft bearing 2 Outer $ 70 MM Undersize 0.25 mm 2
(27) 021 105 543 E Bearing shell for Crankshaft bearing 2 Outer $ 70 MM Undersize 0.50 mm 2
(27) 021 105 549 E Bearing shell for Crankshaft bearing 2 Outer $70 MM Undersize 0,75 MM 2
28 021 105 561 A Crankshaft bearing 3 Outer $ 70 MM 1
(28) 021 105 567 A Crankshaft bearing 3 Outer 70 MM Undersize 0.25 mm 1
(28) 021 105 573 A Crankshaft bearing 3 Outer $ 70 MM Undersize 0.50 mm 1
(28) 021 105 579 A Crankshaft bearing 3 Outer $ 70 MM Undersize 0,75 MM 1
29 021 105 591 Crankshaft bearing 4 Outer $ 50 MM 1
(29) 021 105 597 Crankshaft bearing 4 Outer $ 50 MM Undersize 0.25 mm 1
(29) 021 105 603 Crankshaft bearing 4 Outer $ 50 MM Undersize 0.50 mm 1
(29) 021 105 609 Crankshaft bearing 4 Outer $ 50 MM Undersize 0,75 MM 1
30 021 105 701 A Bearing shell 8 914-4/1,7
914-1,8V/1,8
(30) 039 105 701 Conrod bearing shell 8 914-2,0
(30) 021 105 707 A Bearing shell Undersize 0.25 mm 8 914-4/1,7
914-1,8V/1,8
(30) 039 105 707 Conrod bearing shell Undersize 0.25 mm 8 914-2,0
(30) 021 105 713 A Bearing shell Undersize 0.50 mm 8 914-4/1,7
914-1,8V/1,8
(30) 039 105 713 Conrod bearing shell Undersize 0.50 mm 8 914-2,0
(30) 021 105 719 A Bearing shell Undersize 0,75 MM 8 914-4/1,7
914-1,8V/1,8
(30) 039 105 719 Conrod bearing shell Undersize 0,75 MM 8 914-2,0
